D-LINK DIR-320A 150MBPS 4PORT 3G/LTE DONGLE DEST. ROUTER - Optizen Optik Online Alışveriş Dünyası

Genel Özellikler:

Hardware

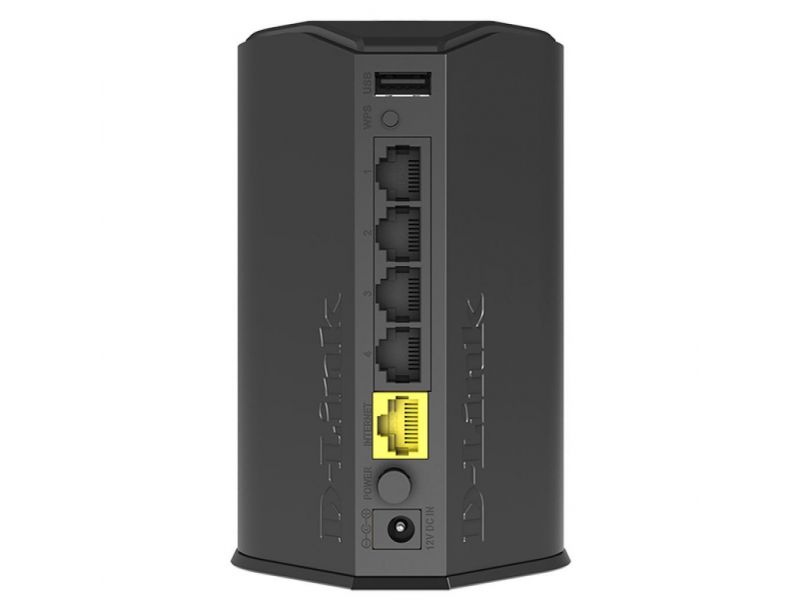

Interfaces	• 10/100BASE-TX WAN port • 4 10/100BASE-TX LAN ports • USB 2.0 port
LEDs	• POWER • STATUS • WLAN / WPS • INTERNET • 4 LAN LEDs • USB
Buttons	• POWER button to power on/power off • RESET button to restore factory default settings • WPS button to set up secure wireless connection and enable/disable wireless network
Antenna	• Internal antenna (2dBi gain)
Power connector	• Power input connector (DC)
Software
WAN connection types	• LTE • 3G • PPPoE • IPv6 PPPoE • PPPoE Dual Stack • Static IP / Dynamic IP • Static IPv6 / Dynamic IPv6 • PPPoE + Static IP / Dynamic IP • PPTP/L2TP + Static IP • PPTP/L2TP + Dynamic IP
Network functions	• Support of IEEE 802.1X for Internet connection • DHCP server/relay • DHCPv6 server (Stateful/Stateless), IPv6 prefix delegation • DNS relay • Support of DNSv6 AAAA records • Dynamic DNS • Static IP routing • Static IPv6 routing • IGMP Proxy • RIP • Support of UPnP IGD • Support of VLAN • WAN ping respond • Support of SIP ALG • Support of RTSP • WAN reservation • Flow control • Speed and duplex mode setup (autonegotiation/manual) for each Ethernet port
Firewall functions	• Network Address Translation (NAT) • Stateful Packet Inspection (SPI) • IP filter • IPv6 filter • MAC filter • URL filter • DMZ • Prevention of ARP and DDoS attacks • Virtual servers • Built-in Yandex.DNS web content filtering service
VPN	• IPSec/PPTP/L2TP/PPPoE pass-through • IPSec tunnels
USB interface functions	• USB modem Auto configuration of connection upon plugging in USB modem¹ Auto connection to available type of supported network (4G/3G/2G)² Enabling/disabling PIN code check, changing PIN code³ • USB storage File browser Print server Access to storage via accounts Built-in Samba server Built-in FTP server Built-in DLNA server Built-in Transmission torrent client; uploading/downloading files from/to USB storage
Management	• Local and remote access to settings through TELNET/WEB (HTTP/HTTPS) • Multilingual web-based interface for configuration and management • Notification on connection problems and auto redirect to settings • Firmware update via web-based interface • Automatic notification on new firmware version • Saving/restoring configuration to/from file • Support of remote logging • Automatic synchronization of system time with NTP server and manual time/date setup • Ping utility • Traceroute utility • TR-069 client
Wireless Module Parameters
Standards	• IEEE 802.11b/g/n
Frequency range	• 2400 ~ 2483.5MHz
Wireless connection security	• WEP • WPA/WPA2 (Personal/Enterprise) • МАС filter • WPS (PBC/PIN)
Advanced functions	• Support of client mode • WMM (Wi-Fi QoS) • Managing connected stations • Advanced settings
Wireless connection rate	• IEEE 802.11b: 1, 2, 5.5, and 11Mbps • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps • IEEE 802.11n: from 6.5 to 150Mbps (from MCS0 to MCS7)
Transmitter output power The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country	• 802.11b (typical at room temperature 25 °C) 17dBm (+/-1.5dB) at 1, 2, 5.5, 11Mbps • 802.11g (typical at room temperature 25 °C) 17dBm (+/-1.5dB) at 6, 9, 12Mbps 16dBm (+/-1.5dB) at 18, 24Mbps 15dBm (+/-1.5dB) at 36, 48, 54Mbps • 802.11n (typical at room temperature 25 °C) HT20/HT40 16.5dBm (+/-1.5dB) at MCS0/1/2 16dBm (+/-1.5dB) at MCS3/4 15.5dBm (+/-1.5dB) at MCS5 15dBm (+/-1.5dB) at MCS6 14dBm (+/-1.5dB) at MCS7
Receiver sensitivity	• 802.11b (typical at PER = 8% at room temperature 25 °C) -82dBm at 1Mbps -80dBm at 2Mbps -78dBm at 5.5Mbps -76dBm at 11Mbps • 802.11g (typical at PER = 10% at room temperature 25 °C) -85dBm at 6Mbps -84dBm at 9Mbps -82dBm at 12Mbps -80dBm at 18Mbps -77dBm at 24Mbps -73dBm at 36Mbps -69dBm at 48Mbps -68dBm at 54Mbps • 802.11n (typical at PER = 10% at room temperature 25 °C) HT20 -82dBm at MCS0 -79dBm at MCS1 -77dBm at MCS2 -74dBm at MCS3 -70dBm at MCS4 -66dBm at MCS5 -65dBm at MCS6 -64dBm at MCS7 HT40 -79dBm at MCS0 -76dBm at MCS1 -74dBm at MCS2 -71dBm at MCS3 -67dBm at MCS4 -63dBm at MCS5 -62dBm at MCS6 -61dBm at MCS7
Modulation schemes	• 802.11b: DQPSK, DBPSK, DSSS, CCK • 802.11g: BPSK, QPSK, 16QAM, 64QAM with OFDM • 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
Physical Parameters
Dimensions	• 134 x 83 x 98 mm (5.3 x 3.3 x 4 in)
Weight	• 203 g (0.44 lb)
Operating Environment
Power	• Output: 12V DC, 1A
Temperature	• Operating: from 0 to 40 °C • Storage: from -20 to 65 °C
Humidity	• Operating: from 10% to 90% (non-condensing) • Storage: from 5% to 95% (non-condensing)
Delivery Package
• Router DIR-320A • Power adapter DC 12V/1A • Ethernet cable (CAT 5) • “Quick Installation Guide” (brochure)
Supported USB modems⁴
GSM	• Alcatel X500 • D-Link DWM-152C1 • D-Link DWM-156A6 • D-Link DWM-156A7 • D-Link DWM-156C1 • D-Link DWM-157B1 • D-Link DWM-157B1 (Velcom) • D-Link DWM-158D1 • D-Link DWR-710 • Huawei E150 • Huawei E1550 • Huawei E156G • Huawei E160G • Huawei E169G • Huawei E171 • Huawei E173 (Megafon) • Huawei E220 • Huawei E352 (Megafon) • ZTE MF112 • ZTE MF192 • ZTE MF626 • ZTE MF627 • ZTE MF652 • ZTE MF667 • ZTE MF668 • ZTE MF752
CDMA	• Airplus MCD-650 • Airplus MCD-800 • AnyDATA ADU-300A • AnyDATA ADU-500A • AnyDATA ADU-510A • Huawei EC306 • ZTE AC5710 • ZTE AC5730
LTE	• Huawei E3131 • Huawei E3272 • Huawei E3351 • Huawei E367 • Huawei E392 • Megafon M100-1 • Megafon M100-2 • Megafon M100-3 • Megafon M100-4 • Megafon M150-1 • MTS 824F • Quanta 1K6E (Beeline 1K6E) • Yota LU-150 • Yota WLTUBA-107 • ZTE MF823 • ZTE MF827

Ürün Özellikleri

: 4 Port
: Var
: İç Ortam
: 2.4 GHz
: Yok
