RUIJIE REYEE RG-EST310 867MBPS 2x2MIMO 13DBI 5GHz OUTDOOR 2 Lİ PAKET ACCESS POINT

RUIJIE RG-EST310 867MBPS 2x2MIMO 13DBI 5GHz OUTDOOR 2 Lİ PAKET ACCESS POINT

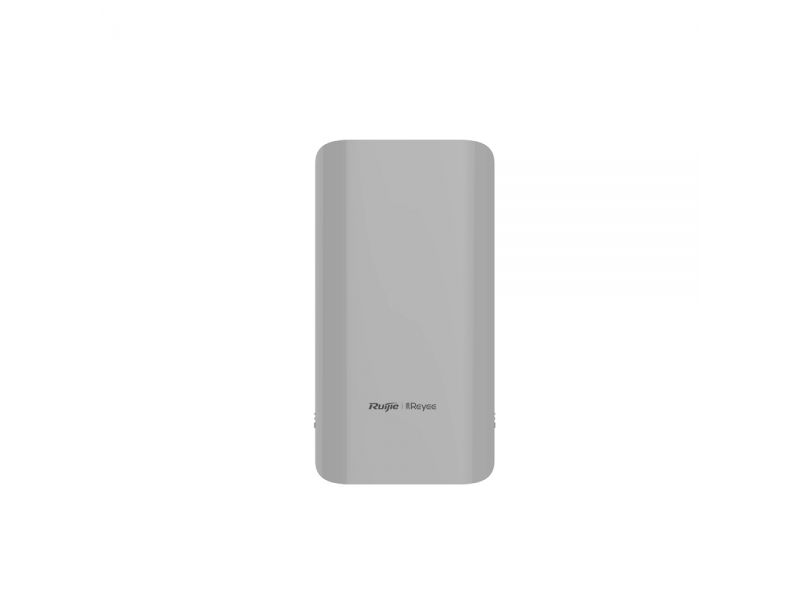

Outdoor Wireless Brige Expert for IP Cameras RG-EST310

High-performance Platform and High-reliability Enclosure
Robust External and Stable Internal Design

Robust and Reliable Enclosure
IP65 Protection
V-0 Flame-retardant Material
Wide Temperature Range

RG-EST310 has adopted the new high-performance 5GHz single-band dual-stream chip solution, which offers up to 867Mbps wireless transmit rate and significantly enhances the efficiency and stability of network bridge data transmission.

Strong Adoptability and High Flexibility for CCTV Networks

Dual Power Supply (Active-standby)

The dual power supply (active-standby) design supports concurrent 12V DC and 24V PoE power modules, offering dual redundancy. EST310 also supports solar panel power supply.

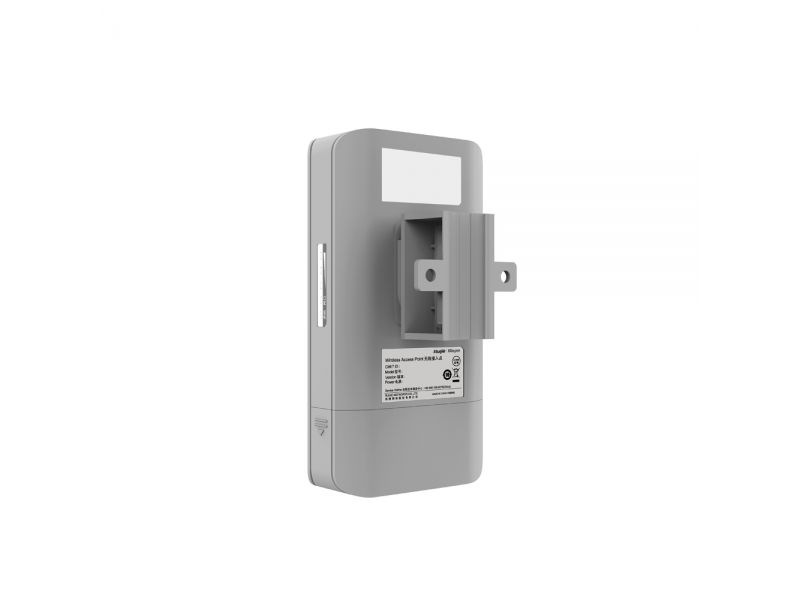

Split-type Installation

The split-type installation supports wall-mount and pole-mount installation.

PTMP Supportted Bridging

Suipport PTMP bridging (1 recorder and multiple cameras). The deployment solution can be adjusted flexibly according to the on-site environment.

Easy-to-manage

Unified, Remote and Mobile Management, Anything You Want

Unified Management

Model	RG-EST310
Hardware Specifications
RAM/ Flash	64MB/8MB
Radio	Dual-stream single-band 2×2
Operating Band	802.11a/n/ac：5.725～5.850GHz
Antenna	Built-in directional antennas, horizontal: 60°, vertical: 30°, gain: 10dBi
Spatial Streams	2
Maximum Throughput	Up to 867Mbps at 5GHz
Transmit Power	≤250mW
Dimensions	147mm(D)×76mm(W)×37mm(H) (Dimensions per device)
	(Same size for the transmitter and receiver,
	H: height of the device excluding the mounting kits)
Weight	0.35kg
Ports	1 10/100Base-T Ethernet port, supports 24VDC non-standard PoE
	1 DC port, supports 12VDC power supply
Hardware Button	1 reset button
Status Indicators	System indicator: 1
	Port indicator: 1
	Bridge signal strength indicators: 3
Power Supply	Support 12VDC power supply and 24VDC non-standard PoE
Power Consumption	＜5W
Environment	Operating temperature: -30°C～50°C
	Storage temperature: -40°C～70°C
	Operating humidity: 5% to 95% (non-condensing)
	Storage humidity: 5% to 95% (non-condensing)
Installation	Wall-mounted/ Pole-mounted (straps provided)
IP Rating	IP65
Lightning Protection	4KV
Radio Standard	SRRC certification
Automatic Bridging	The recorder-end and camera-end are automatically paired for bridging by default
Device Configuration and Management	Support App/Web configuration
QR Code Login	Users can log in to the device configuration interface by scanning the QR code of the device using the app
Self-healing	Automatic restart upon equipment failure
Automatic Channel Adjustment	Automatically adjust the channel upon power-on

#ruijie #accesspoint #network
