BU ÜRÜNDE ÜCRETSİZ UZAKTAN KURULUM DESTEĞİ MEVCUTTUR

22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.

FortiGate 100F Series Özellikleri

FortiGate 100F serisi kompakt, fansız kompakt ve hızlı bir SD-WAN çözümü sunar
kurumsal şube ofisleri ve orta ölçekli işletmeler için masaüstü form faktörü.
Basit, uygun fiyatlı ve kurulumu kolay bir çözümde çip üzerinde sistem hızlandırması ve sektör lideri güvenli SD-WAN ile siber tehditlere karşı koruma sağlar.
Fortinet’in Güvenlik Odaklı Ağları, yeni nesil siber güvenlik çözümleriyle güvenli bir şekilde bütünleşir.

Overview:

The FortiGate 100F series combines next generation firewall and SD-WAN capabilities for mid-sized to large enterprise distributed locations. Powered by purpose-built Secure SD-WAN ASIC, FortiGate 100F delivers optimal performance for business-critical applications along with best security effectiveness.

Security

Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services

Performance

Delivers industry’s best threat protection performance and ultra-low latency using purpose built-security processor (SPU) technology
Provides industry-leading performance and protection for SSL encrypted traffic

Certification

Independently tested and validated best security effectiveness and performance
Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives

Networking

Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience
Delivers advanced networking capabilities, high-performance, and scalable IPsec VPN capabilities to consolidate networking and security

Management

Includes management console that’s effective, simple to use, and provides comprehensive network automation & visibility.
Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products

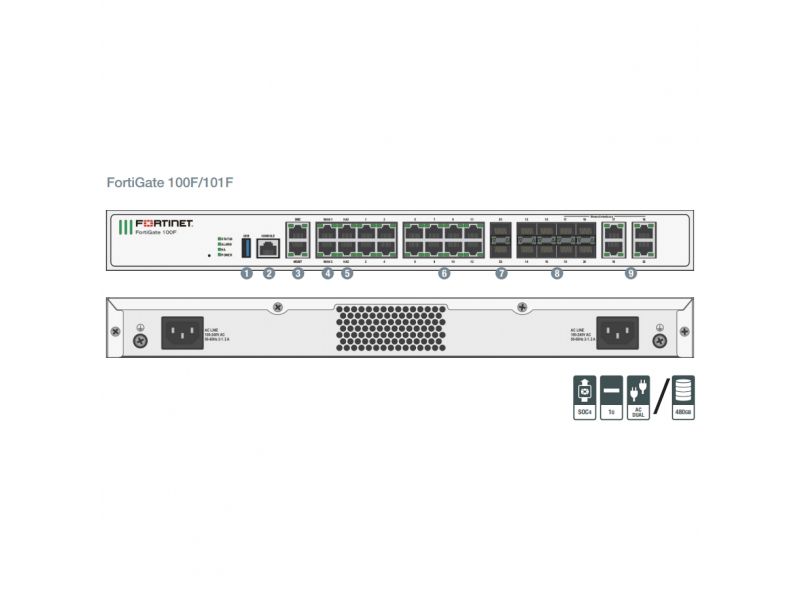

FORTIGATE 100F
Hardware Specifications
GE RJ45 Ports	12
GE RJ45 Management/HA/DMZ Ports	1 / 2 / 1
GE SFP Slots	4
10 GE SFP+ Slots	2
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports *	4
USB Port	1
Console Port	1
Internal Storage	—
Included Transceivers	0
System Performance — Enterprise Traffic Mix
IPS Throughput²	2.6 Gbps
NGFW Throughput^{2, 4}	1.6 Gbps
Threat Protection Throughput^{2, 5}	1 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	20 / 18 / 10 Gbps
Firewall Latency (64 byte UDP packets)	5 μs
Firewall Throughput (Packets Per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	56,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)¹	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	750 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS) ³	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)³	1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS)³	135,000
Application Control Throughput (HTTP 64K) ²	2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel Mode)	64 / 32
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254
Form Factor	Rack Mount, 1 RU
Weight	7.25 lbs (3.29 kg)
Environment
Power Required	100–240V AC, 60–50 Hz
Maximum Current	100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)	35.1 W / 38.7 W
Heat Dissipation	119.77 BTU/h
Environment
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	10–90% non-condensing
Noise Level	40.4 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
